EPS Lightweight Concrete Panels – A Next-Gen Building Solution
1. What Are EPS Lightweight Concrete Panels?
EPS lightweight concrete panels are a modern construction material made from a core mixture of cement, expanded polystyrene (EPS) beads, fly ash, and additives. This core is sandwiched between two outer layers of durable fiber-cement boards (Cemboard), forming a sturdy, lightweight panel with excellent thermal insulation, fire resistance, and soundproofing properties.
These panels are designed to replace traditional bricks in various applications such as walls, floors, ceilings, and partitions, significantly reducing structural load while maintaining strength and durability.
2. Core Composition & Structure
Core layer: Cement mixed with EPS beads, fly ash, and reinforcing fibers
Outer layer: Moisture-resistant fiber-cement boards (Cemboard)
Optional PVA fibers: Improve crack resistance, tensile strength, and lifespan
3. Available Types & Dimensions
Panel Type Standard Size (mm) Weight (kg/panel)

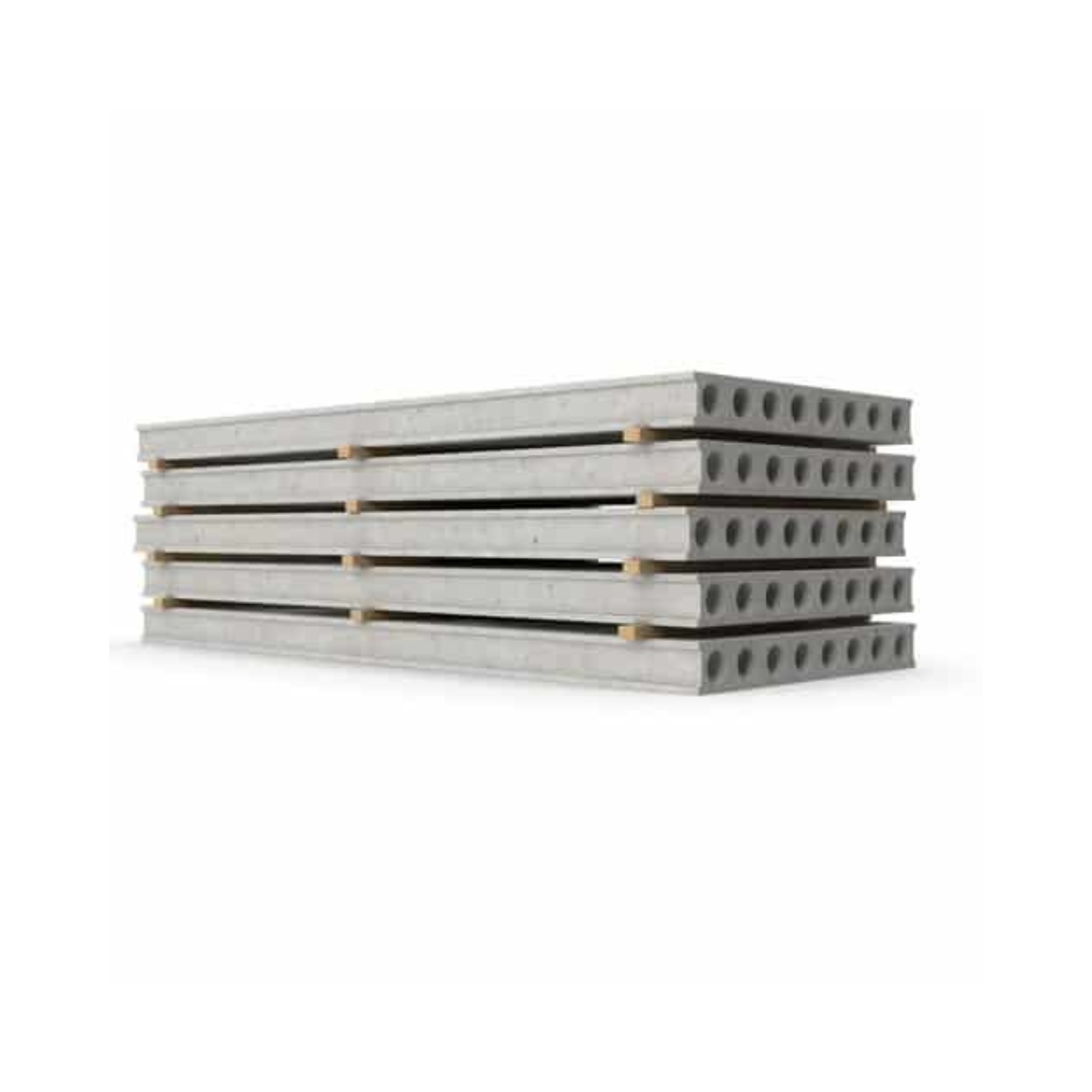

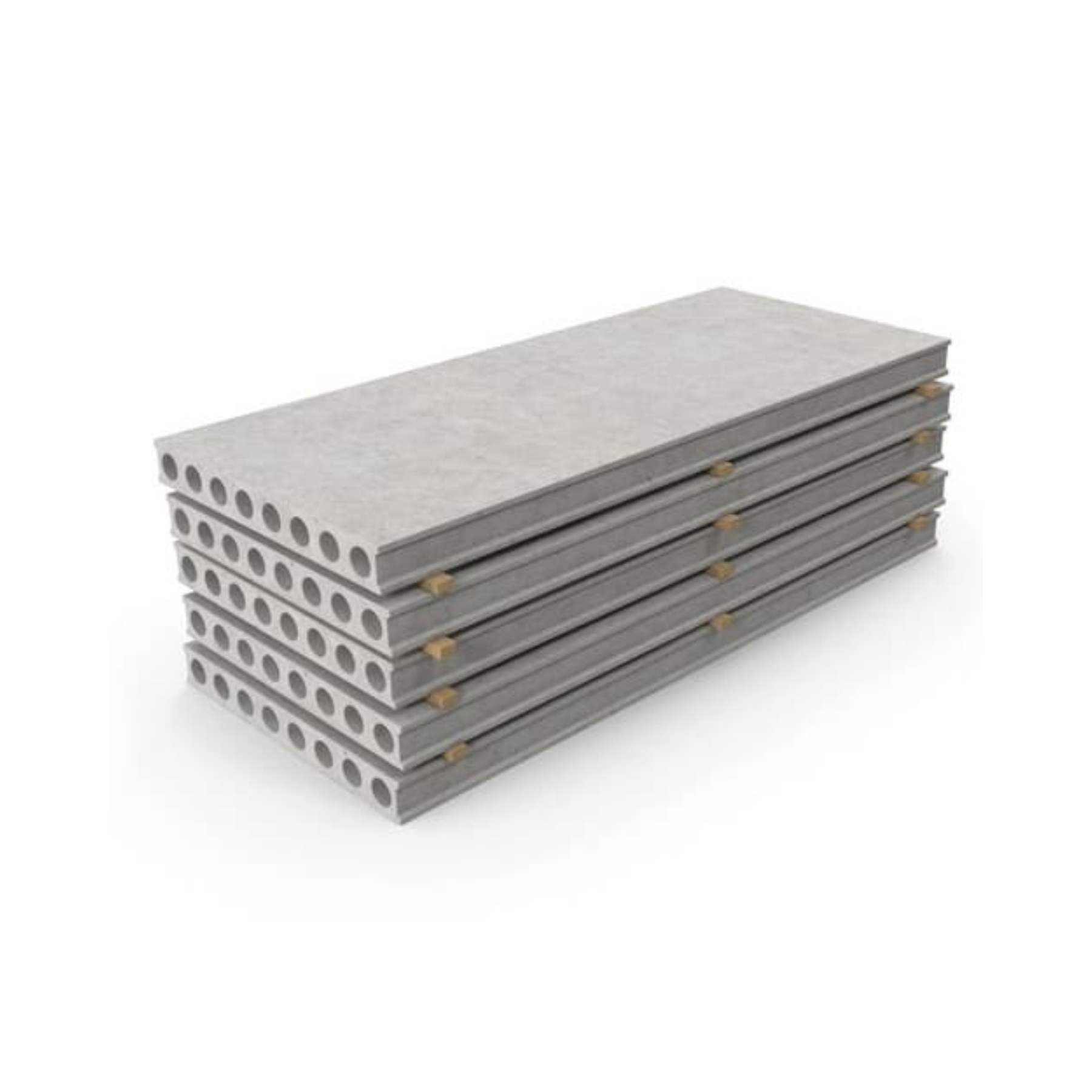

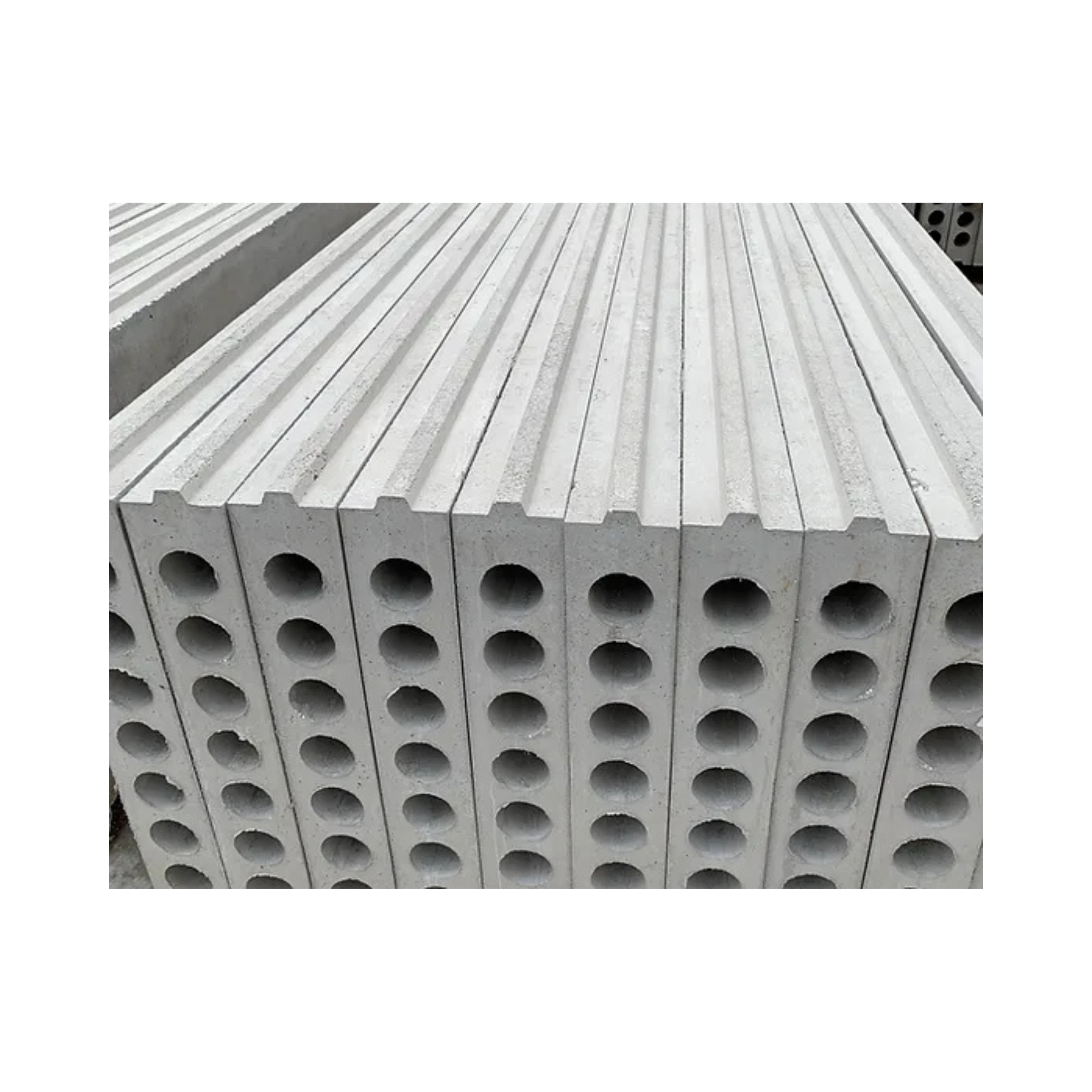

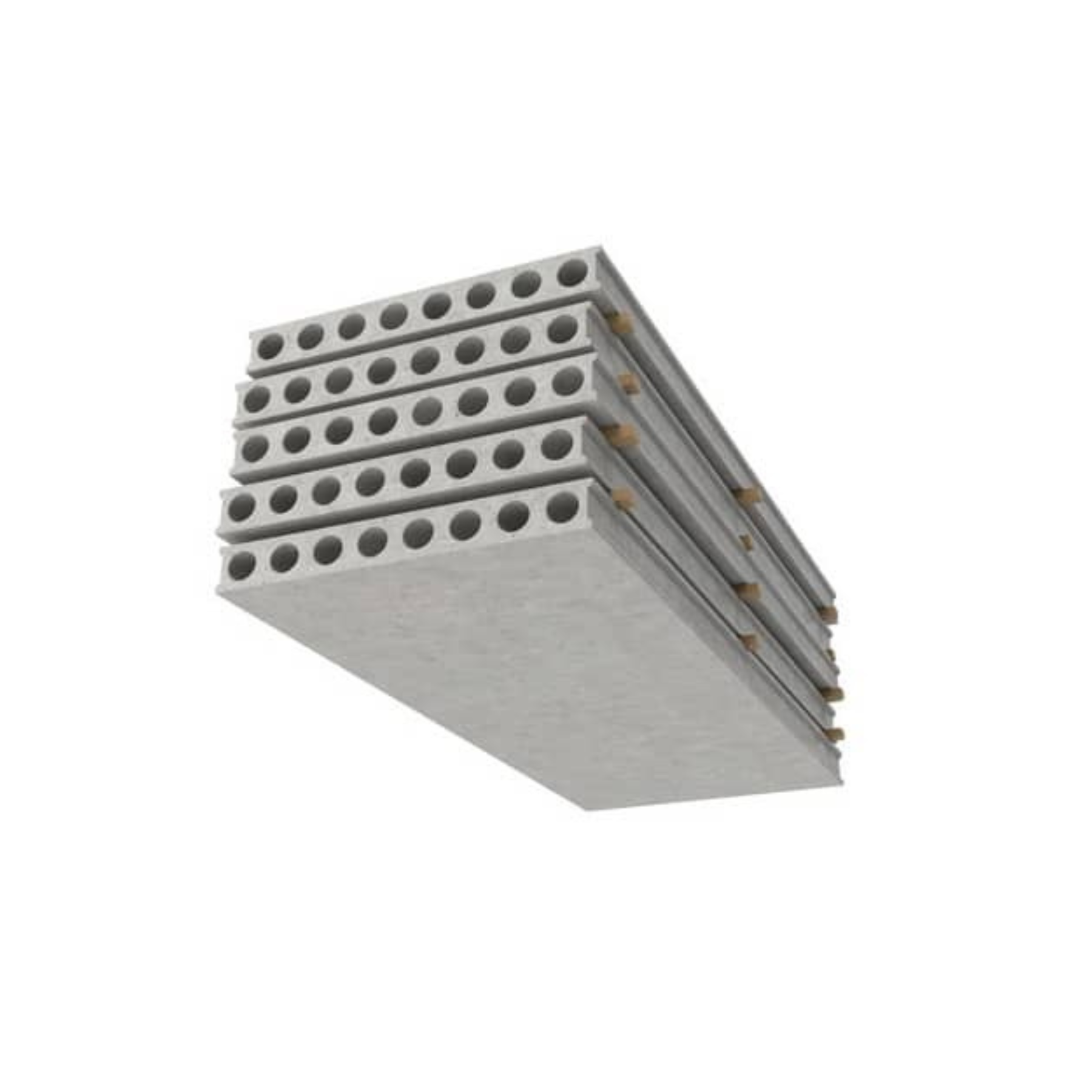

Hollow-core EPS panel 2440 × 610 × 100 ~105 kg
2-layer steel-reinforced 2440 × 610 × 75 / 100 84 – 105 kg

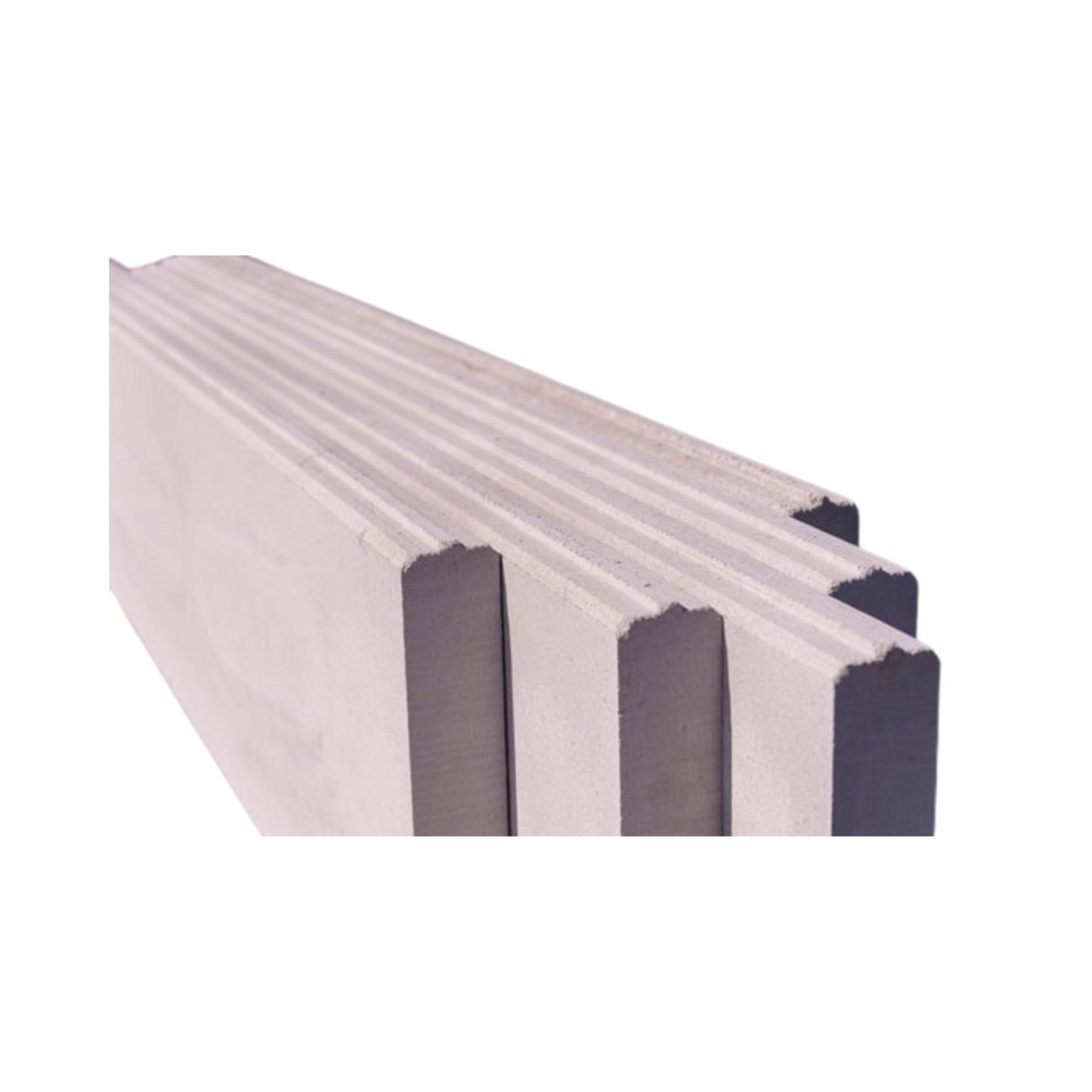

Solid-core 3-layer EPS 2440 × 610 × 75 / 100 84 – 100 kg
Other thickness options range from 20 mm to 100 mm depending on project requirements.
4. Key Technical Specifications
Average density: ~800–850 kg/m³
Thermal conductivity: < 0.025 W/m·K – excellent thermal insulation
Sound insulation: Up to 48 dB (with 100 mm thickness)
Fire resistance: Can withstand 1000°C for up to 3 hours
Water absorption: 7–8%, highly moisture-resistant
Load-bearing capacity: Up to 1000 kg/m² depending on type
5. Outstanding Advantages
✅ Lightweight – Easier to handle and install, reduces construction time and labor
✅ Thermal + sound insulation + fire resistance – Suitable for both residential and industrial projects
✅ Highly durable – No warping, rotting, or corrosion
✅ Eco-friendly – Low CO₂ emissions, made from recyclable materials
✅ Flexible application – Easily cut and installed with basic tools
6. Practical Applications

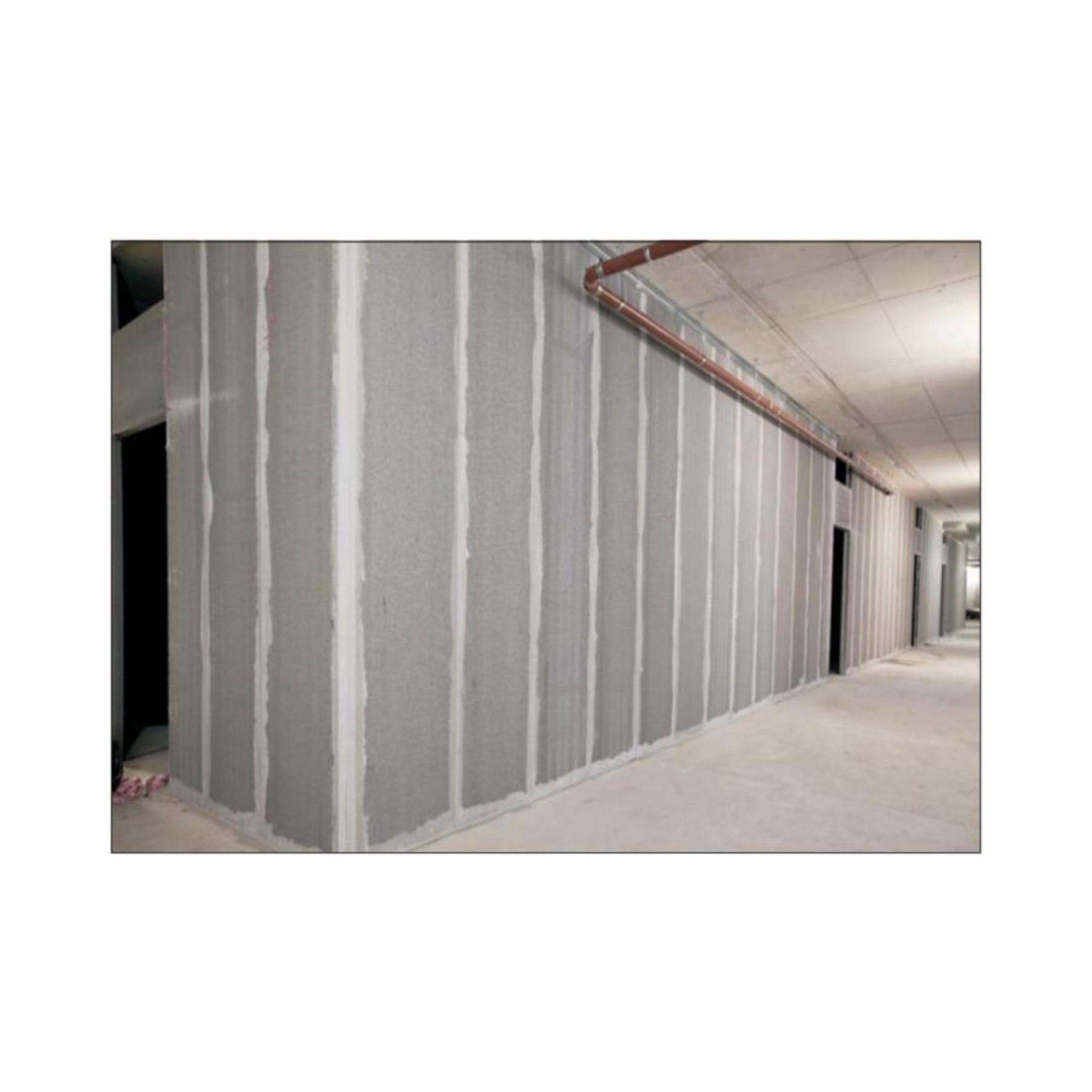

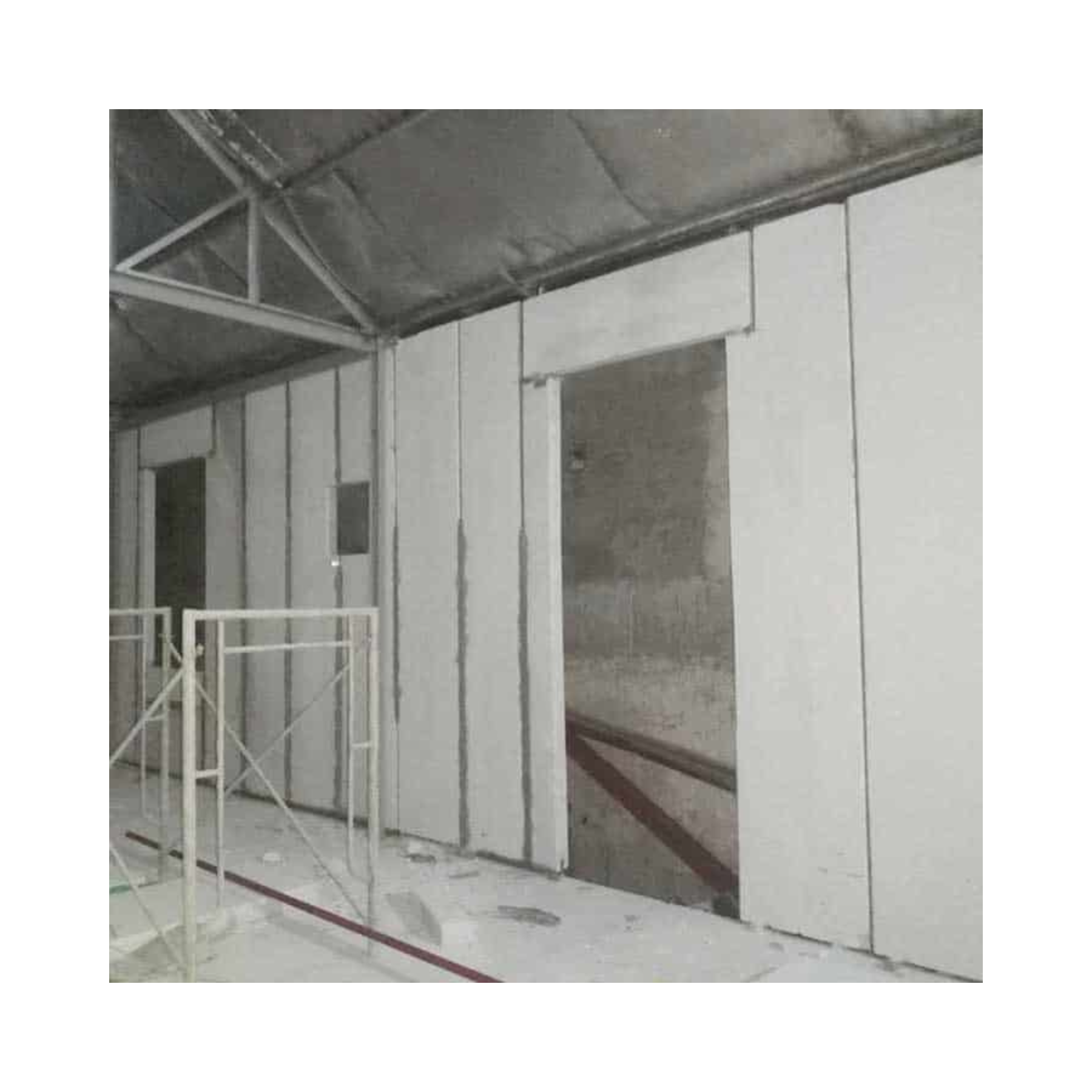

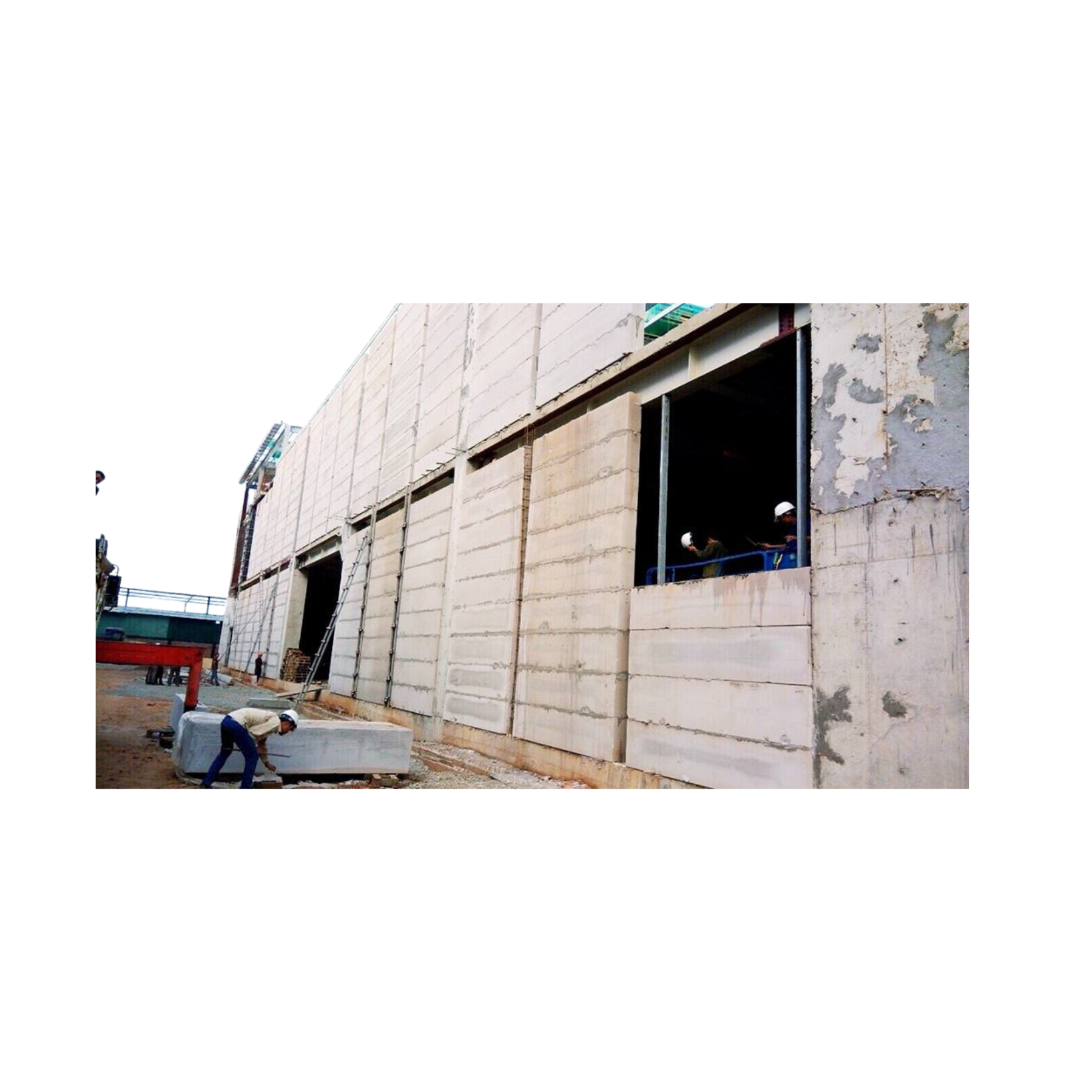

Exterior and interior partition walls
Office dividers and cleanroom enclosures
Mezzanine floors and intermediate slabs
Ceilings and roof insulation

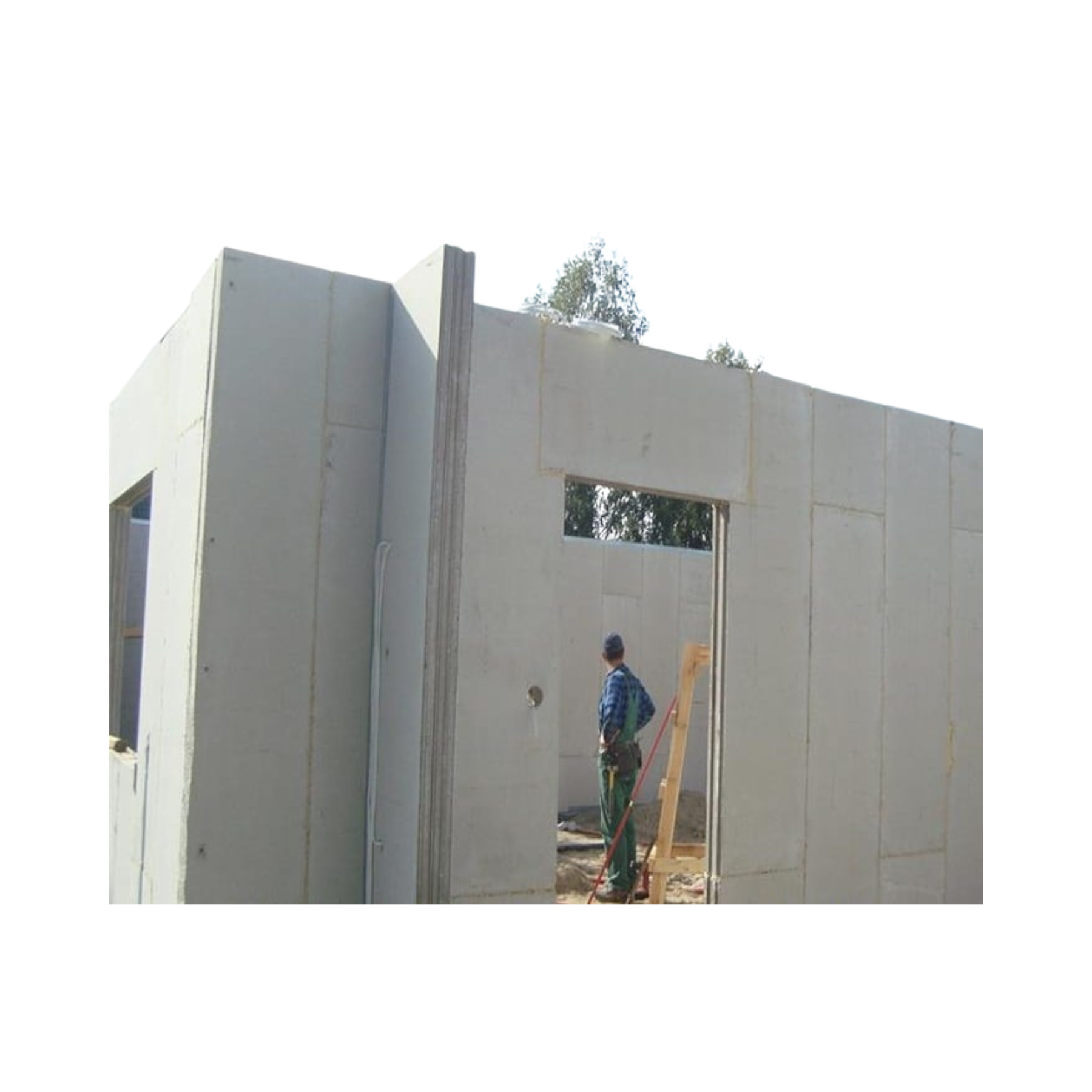

Boundary walls, prefab houses, temporary structures
EPS lightweight concrete panels are the ideal solution for construction projects that require fast installation, long-term energy efficiency, and cost savings.
